Basic Info

Model No.: DN50-DN300

Wide Tollerance Flange Adaptors: Ductile Cast Iron HDPE Pipe Fittings Flange Adaptor For PE Pipeline DVGW Powder For Potable Water

Additional Info

Productivity: 1-999999

Brand: PIPESOL

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 1-999999

Product Description

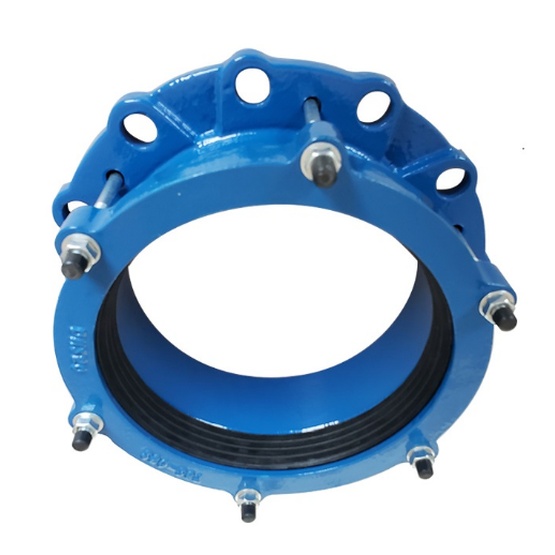

About PE Restraint Flange Adaptor With Brass Thrust Ring:
1.The restraint system is effective independent of the pipe sealing and is achieved by tightening the lock ring.
2.The pipe end can be pushed into the sealing chamber without major effort.The flat gasket is already mounted on the flange.
3.For thin-walled PE-pipes (up to 3mm wall thickness) and low internal pressure as well as the use of support liners is required.
SPECIFICATION:
Type Test:EN14525/BS8561
Elastomeric:EN681-2
Ductile Iron:EN1563 EN-GJS-450-10
Coating:WIS4-52-01
Drilling Spec:EN1092-2
Connection for HDPE pipe;
Working pressure: PN10/16;
Maximum temperature: -10 ~ +70;
Suitable for potable water, neutral liquids and sewage;
WRAS approved.
Corrosion resistent construction.

Flange drilling with BS or ANSI standard;
