Basic Info

Model No.: DN50-DN2400

Body Material: Ductile Iron

Rings Material: EPDM/NBR

Coating: Fusion Bonded Eposy

Type Tes: EN14525 / BS8561

Additional Info

Packaging: Wooden Pallent

Productivity: 5000 pieces/month

Brand: PSL

Transportation: Ocean,Air

Place of Origin: Shandong,China

Supply Ability: 5000 pieces/month

Certificate: ISO9001:2008

Product Description

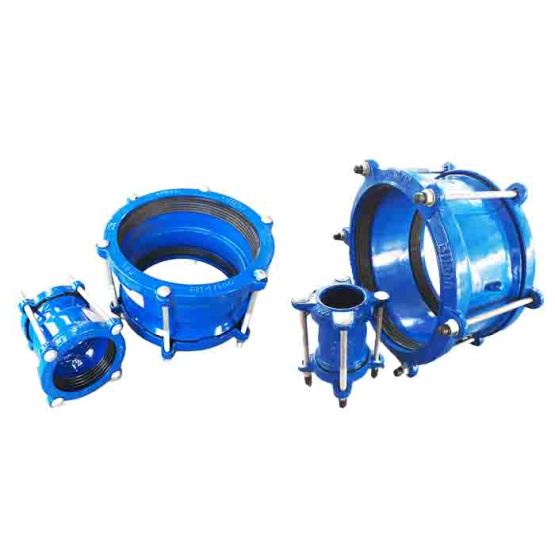

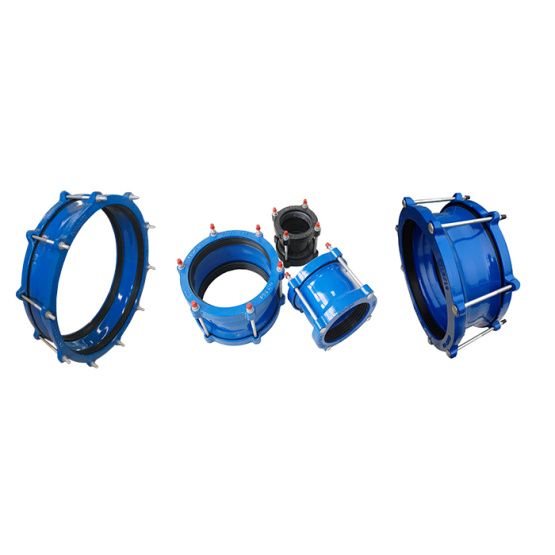

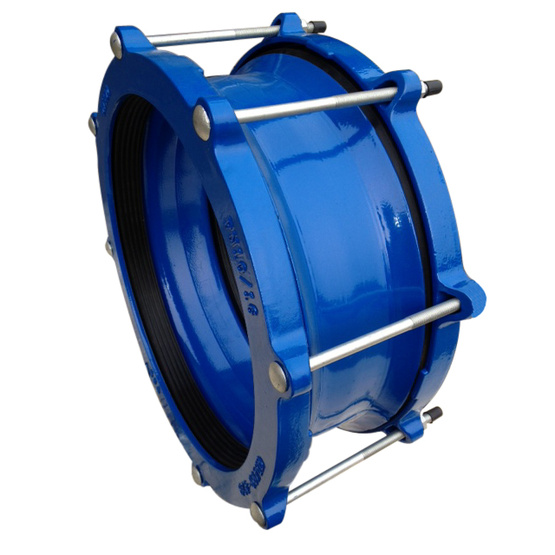

About Light Duty Universal Wide Tolerance Coupling PN10 PN16:

Wide tolerance universal couplings include both flexible fittings that allow for expansion, contraction and movement, and fully restrained versions, that remove the need for expensive thrust blocks to accommodate forces due to internal pressure in pipes.

FEATURES:
Fully corrosion resistant construction
Inside and outside fusion bonded epoxy coating
Light weight ductile iron construction design
Wide joint range
Cold galvanize carbon steel fastener
EPDM gaskets with WRAS approved
SPECIFICATION:
Type Test:EN14525/BS8561
Elastomeric:EN681-2
Ductile Iron:EN1563 EN-GJS-450-10
Coating:WIS4-52-01

Drilling Spec:EN1092-2

Connection for DI,Steel pipe ,

Suitable for water and neutral liquids (sewage) application
Working temperature up to 70°C

· Resilient Seated Gate Valves

· Butterfly Valves

· Air Release Valves

· Smart Water Meters and in addition both monitoring and billing platforms

· Dismantling Joints

· Flange Adapters, Straight & Stepped Couplings, Ductile Iron Repair Clamps and Tapping Saddles, Stainless Steel Repair Clamps and Tapping Saddles

· Ductile Iron Flanged Pipework

 We carry an extensive stock of these items which are readily available in our warehouse for shipment, and can accommodate both small and large order quantities.



We would welcome the opportunity to provide you with a quotation, and look forward to hearing from you very soon.

We are manufacturer of Stainless Steel Valve in China, if you want to buy Air Valve, Check Valve, Butterfly Valve, please contact us.

SHANDONG PIPESOL is a high-tech professional manufacturer for water supply and drainage valves and pipe fittings,the main valves are non rising stem resilient seated wedge gate valves,hivent double orifice air release and vacuum valves,combined valve tees, double eccentric center butterfly valves and so on.Our gate valves can be produced as BS5163 and DIN3352.The hivent double orifice air release and vacuum valve and combined valve tees have all got the national patent.Our products are produced by using high qualtiy raw materials and high-tech technology and strict management,in order to ensure the highest levels of product quality and safety.
