Basic Info

Model No.: DN50-DN300

Body Material: Ductile Iron

Rings Material: EPDM/NBR

Type Test: EN14525

Connection Type: Flange Joint

Additional Info

Packaging: Wooden Pallent

Productivity: 500 pieces/month

Brand: PSL

Transportation: Ocean,Air

Place of Origin: Shandong,China

Supply Ability: 5000 pieces/month

Certificate: ISO9001:2008

Product Description

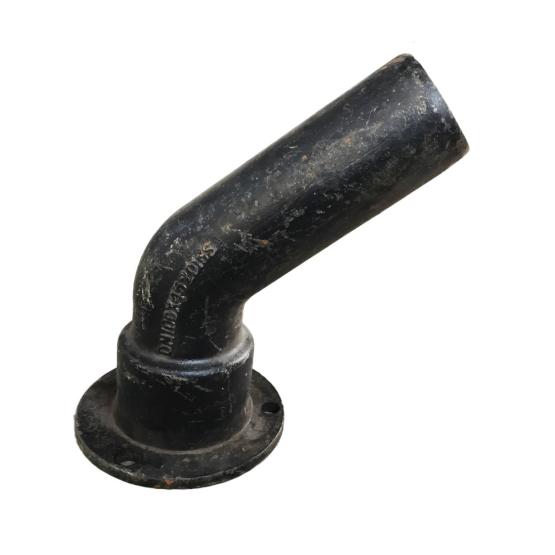

About Ductile Iron Bolted Gland 45° Bend :

K type ductile iron bolted gland 45° bend is new product,which can replace the general DI bend,be installed in the various of  water pipeline.This kind of bend is K type socket,include gland,seal and bolts,can be easily to install in the water pipeline.

Ductile iron pipes are widely used in various fields,due to it's high strength and toughness.In order to ensure the same high strength and toughness,We produce 45 Deg K type socket bend with Ductile iron-EN-GJS-450-10. And we docuse on anticorrosion performance of castings,so the coating usually can be black bituminous paint or epoxy powder coating.

*PN10 and PN16 are available
*Available in K Type;
*Available from DN100-300
*Angle: 11.25, 22.5, 45, 90 DEG
*Working pressure PN10/16;
*Maximum temperature -10 +70;
*WRAS approved.
*Corrosion resistent construction.
SPECIFICATION:
Type Test:ISO2531,EN545/598,BS4772,AS3996,AWWA C110/C153,
Ductile Iron:EN1563 EN-GJS-450-10
Coating:WIS4-52-01
Standard:EN545/ISO2531

· Resilient Seated Gate Valves

· Butterfly Valves

· Air Release Valves

· Smart Water Meters and in addition both monitoring and billing platforms

· Dismantling Joints

· Flange Adapters, Straight & Stepped Couplings, Ductile Iron Repair Clamps and Tapping Saddles, Stainless Steel Repair Clamps and Tapping Saddles

· Ductile Iron Flanged Pipework

We are manufacturer of Stainless Steel Valve in China, if you want to buy Air Valve, Check Valve, Butterfly Valve, please contact us.

SHANDONG PIPESOL is a high-tech professional manufacturer for water supply and drainage valves and pipe fittings,the main valves are non rising stem resilient seated wedge gate valves,hivent double orifice air release and vacuum valves,combined valve tees, double eccentric center butterfly valves and so on.Our gate valves can be produced as BS5163 and DIN3352.The hivent double orifice air release and vacuum valve and combined valve tees have all got the national patent.Our products are produced by using high qualtiy raw materials and high-tech technology and strict management,in order to ensure the highest levels of product quality and safety.
